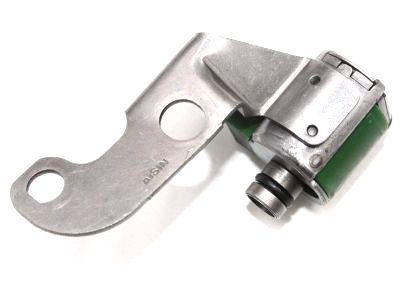

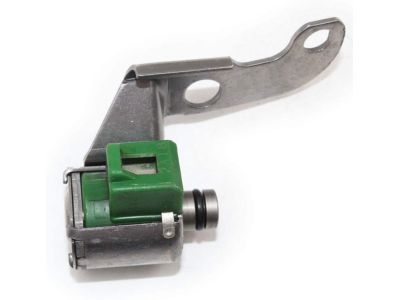

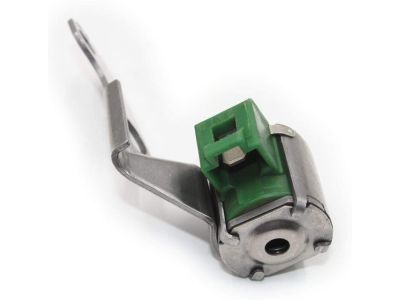

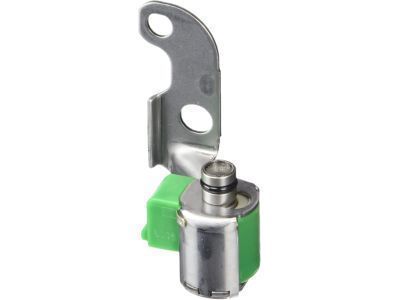

Toyota Transmision Solenoid

Description

Title: Unraveling the Mechanics: The Transmission Solenoid’s Role in Smooth Gear Changes

In the intricate world of automotive engineering, the transmission solenoid stands as a silent yet indispensable actor, orchestrating the seamless dance of gear changes within an automatic transmission. Often overshadowed by more prominent components, the transmission solenoid plays a pivotal role in ensuring smooth shifting, optimal performance, and overall driving experience. In this blog, we’ll dive into the mechanics of the transmission solenoid, its functions, types, and the critical role it plays in modern automotive transmissions.

### Understanding the Transmission Solenoid

The transmission solenoid is an electro-hydraulic valve responsible for controlling the flow of transmission fluid within an automatic transmission. It is typically mounted on the transmission valve body and receives signals from the transmission control module (TCM) or engine control unit (ECU) to regulate gear changes and transmission operation.

### Functions of the Transmission Solenoid

1. **Gear Shifting**: The primary function of the transmission solenoid is to actuate the various clutch packs, bands, and valves within the transmission to facilitate gear changes. By controlling the flow of transmission fluid to different components, the solenoid ensures smooth and precise shifting between gears.

2. **Lock-Up Operation**: In some transmissions, the solenoid also controls the engagement of the torque converter lock-up clutch, which improves fuel efficiency and reduces heat buildup within the transmission by minimizing slippage.

3. **Diagnostic Feedback**: The transmission solenoid can provide valuable diagnostic feedback to the TCM or ECU, indicating potential issues such as low fluid pressure, solenoid performance problems, or transmission malfunctions.

### Types of Transmission Solenoids

1. **Shift Solenoids**: These solenoids control the activation of specific clutch packs or valves to facilitate gear changes. Shift solenoids are typically designated as A, B, C, etc., depending on their function and position within the transmission.

2. **Lock-Up Solenoid**: In transmissions equipped with a torque converter lock-up clutch, the lock-up solenoid regulates the engagement and disengagement of the clutch to improve fuel efficiency and reduce transmission heat.

3. **Pressure Control Solenoid**: Pressure control solenoids regulate the hydraulic pressure within the transmission, ensuring proper operation of clutch packs and valves across different driving conditions.

### Importance of Transmission Solenoids in Driving Experience

The performance and efficiency of an automatic transmission hinge on the proper functioning of its solenoids. A malfunctioning or failing solenoid can lead to a range of issues, including harsh or delayed shifts, gear slippage, transmission overheating, and even transmission failure. Regular maintenance, including fluid checks and solenoid inspections, is essential to ensure smooth operation and prevent costly repairs.

### Conclusion

While often overlooked, the transmission solenoid plays a vital role in the operation and performance of automatic transmissions. By regulating the flow of transmission fluid and coordinating gear changes, these electro-hydraulic valves enable smooth shifting, optimal fuel efficiency, and overall driving satisfaction. As automotive technology continues to advance, the importance of transmission solenoids in shaping the future of automatic transmissions cannot be understated.
