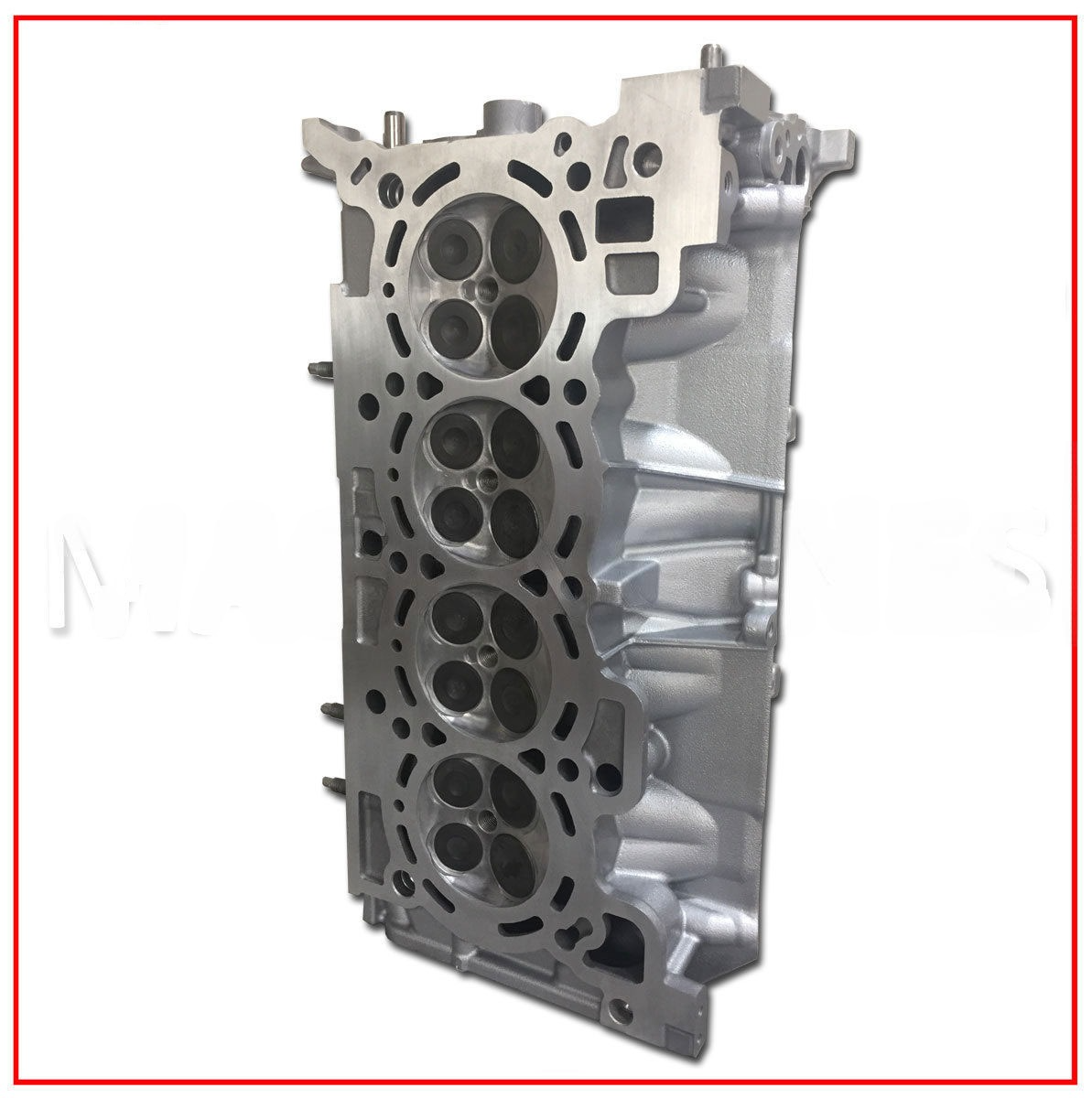

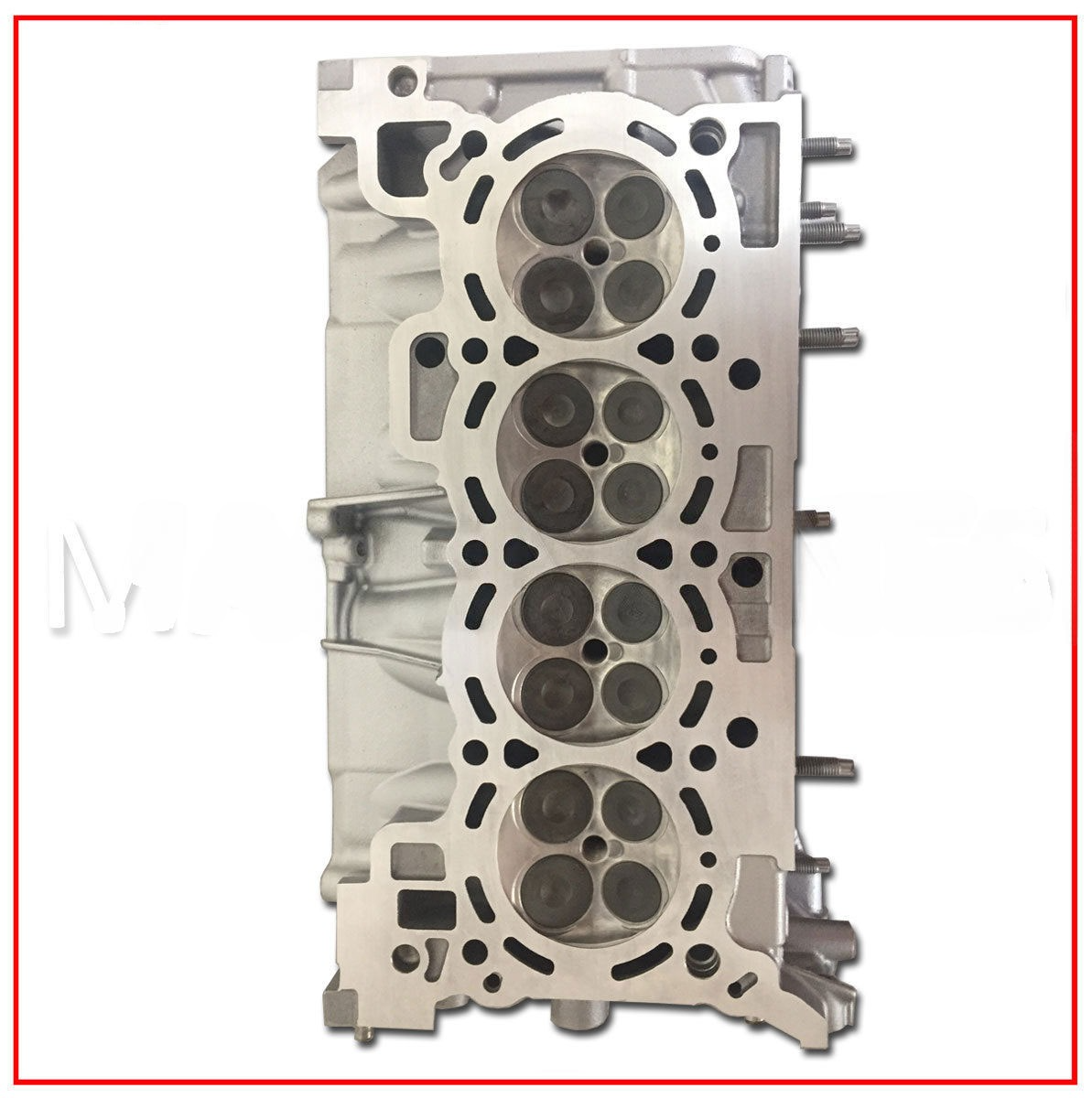

Nissan Cylinder Head (16 VALVE CYLINDER HEAD WITH CAMS & VALVES)

Description

Title: Unveiling the Heart of Power: Exploring the Engine Cylinder Head

In the intricate anatomy of an automotive engine, few components are as crucial and captivating as the cylinder head. Serving as the gateway to combustion and the orchestrator of airflow, the cylinder head plays a pivotal role in the engine’s performance, efficiency, and durability. In this blog, we’ll delve into the intricacies of the engine cylinder head, its functions, construction, and its indispensable contribution to the power and prowess of internal combustion engines.

### The Heart of Power: Understanding the Engine Cylinder Head

The cylinder head is a critical component located at the top of the engine block, sealing the combustion chambers and housing essential mechanisms such as valves, camshafts, and spark plugs. Its primary function is to facilitate the intake of air and fuel, the expulsion of exhaust gases, and the containment of combustion within the engine cylinders.

### Functions of the Cylinder Head

1. **Sealing the Combustion Chambers**: The cylinder head forms a crucial seal with the engine block, enclosing the combustion chambers and creating a controlled environment for combustion to occur.

2. **Valve Operation**: The cylinder head houses intake and exhaust valves that open and close to allow air and fuel into the combustion chamber and exhaust gases out. These valves are actuated by the camshaft, which is typically located within the cylinder head.

3. **Coolant Passages**: Many cylinder heads feature coolant passages that allow coolant to flow through the engine to dissipate heat generated during combustion, helping to maintain optimal operating temperatures.

4. **Spark Plug Mounting**: Spark plugs are mounted in the cylinder head, where they ignite the air-fuel mixture to initiate combustion.

### Construction of the Cylinder Head

Cylinder heads are typically made from durable materials such as cast iron or aluminum alloy, chosen for their heat resistance, strength, and lightweight properties. The casting process ensures precise geometry and intricate passages for optimal airflow and coolant circulation. Modern cylinder heads often feature integrated components such as valve seats, guides, and camshaft bearing surfaces, further optimizing performance and reliability.

### Variations in Cylinder Head Design

1. **Overhead Valve (OHV)**: In OHV engines, the valves are located within the cylinder head but are actuated by pushrods and rocker arms, resulting in a compact and relatively simple design.

2. **Overhead Camshaft (OHC)**: OHC engines feature camshafts located directly above the valves, eliminating the need for pushrods and rocker arms. This design allows for more precise valve control and higher engine speeds.

3. **Variable Valve Timing (VVT)**: Some modern cylinder heads incorporate variable valve timing mechanisms that adjust the timing of the intake and exhaust valves for optimal performance and efficiency across different engine operating conditions.

### The Significance of Cylinder Heads in Engine Performance

The design and condition of the cylinder head have a profound impact on engine performance, efficiency, and longevity. Well-designed cylinder heads optimize airflow, combustion, and cooling, leading to improved power output, fuel economy, and emissions control. Regular maintenance, including valve adjustments, inspection of coolant passages, and occasional cylinder head machining, is essential to ensure peak performance and prevent costly repairs.

### Conclusion

In the symphony of internal combustion, the engine cylinder head stands as a maestro, directing the flow of air, fuel, and exhaust gases with precision and poise. From sealing combustion chambers to orchestrating valve operation, its role in shaping engine performance and efficiency cannot be overstated. As automotive technology continues to evolve, the cylinder head remains a testament to engineering ingenuity, driving advancements in power, efficiency, and environmental responsibility.
