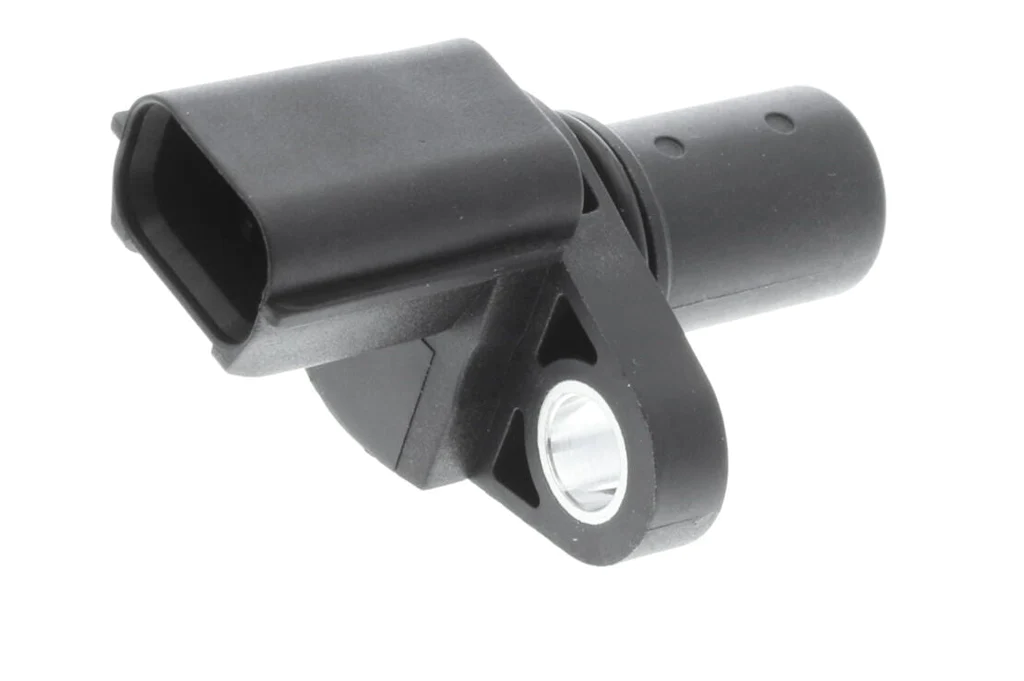

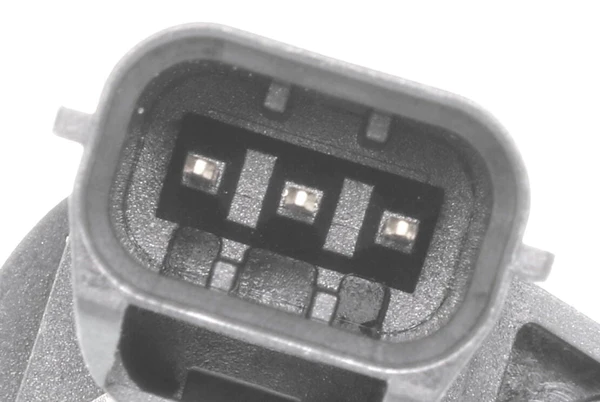

Mitsubishi Camshaft Sensor

Mitsubishi Camshaft Sensor

CHECKING THE CAMSHAFT POSITION SENSOR: TROUBLESHOOTING

Check the connection line from the control unit to the sensor using the ohmmeter. Remove the connector from the control unit and remove the sensor, check the individual cables for continuity. A circuit diagram is required for the pin assignment. Reference value: approx. 0 Ohm.

2

Checking the connection lines for short circuit to frame

Check the connection lines for short circuit to frame. Measurement between sensor plug and vehicle ground, control unit plug removed. Reference value: >30 MOhm.

3

Checking the supply voltage

Check the supply voltage from the control unit to the sensor. Insert the control unit plug, switch the ignition on. Reference value: approx. 5 V (note manufacturer’s specifications).

4

Checking the signal voltage

Check the signal voltage. Connect the measuring cable from the oscilloscope and start the engine. A square wave signal must be displayed on the oscilloscope.

In stock (can be backordered)

$18,926.31

In stock (can be backordered)

Add to Wishlist
Add to Wishlist

Share Product

SKU MR985041 Categories ,

Description

CHECKING THE CAMSHAFT POSITION SENSOR: TROUBLESHOOTING

Check the connection line from the control unit to the sensor using the ohmmeter. Remove the connector from the control unit and remove the sensor, check the individual cables for continuity. A circuit diagram is required for the pin assignment. Reference value: approx. 0 Ohm.

2

Checking the connection lines for short circuit to frame

Check the connection lines for short circuit to frame. Measurement between sensor plug and vehicle ground, control unit plug removed. Reference value: >30 MOhm.

3

Checking the supply voltage

Check the supply voltage from the control unit to the sensor. Insert the control unit plug, switch the ignition on. Reference value: approx. 5 V (note manufacturer’s specifications).

4

Checking the signal voltage

Check the signal voltage. Connect the measuring cable from the oscilloscope and start the engine. A square wave signal must be displayed on the oscilloscope.

Additional information

Warehouse

Inventory at ware house 2
